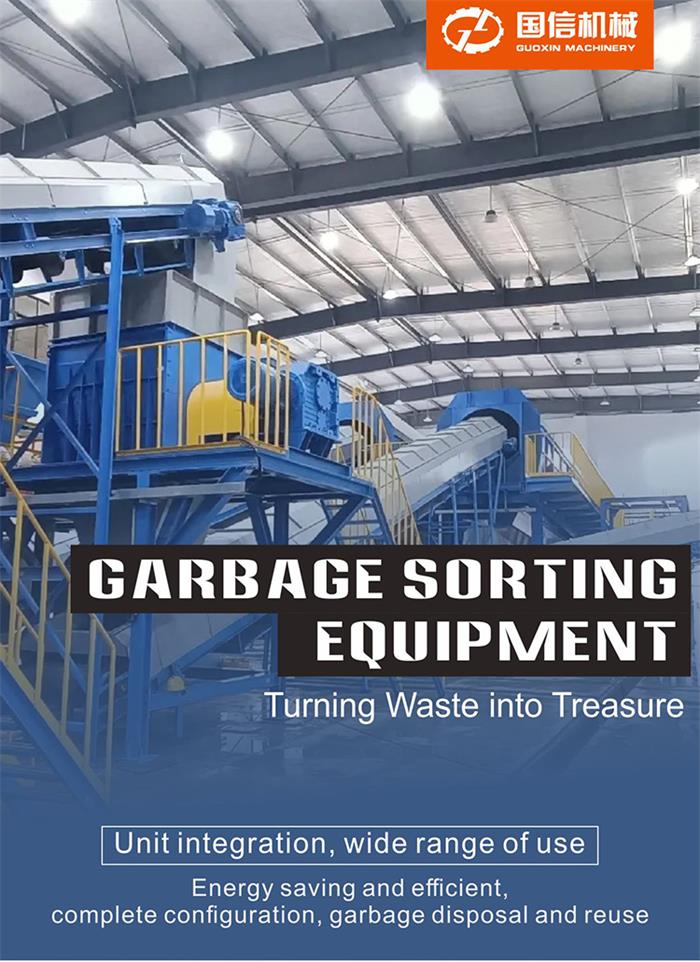

Introduction of construction garbage sorting system

Our Guoxin Machinery are specialized in waste separation and treatment equipment, We have developed and manufactured a waste sorting and processing system, which can process various types of waste. which can be called domestic waste sorting system, construction waste sorting system, decoration garbage sorting system.

Materials suitable for the construction garbage sorting system

Its mainly used to the household waste, industrial waste, construction waste, decoration waste, and stale waste etc.

How this construction garbage sorting system work?

The decoration waste sorting machine can sort waste cloth, plastic bags and other sundries in the decoration waste recycling aggregate, and can also clear out large and medium-sized wooden blocks and plastic stool waste. After two screenings, the impurity separation rate reached 98%. Among them, concrete and waste rock are used to produce coarse and fine aggregates, which can be used to produce concrete and mortar of corresponding strength levels or to prepare building materials such as blocks, wall panels, and floor tiles.

After adding cured material to coarse and fine aggregate, it can also be used for the base course of road pavement. Waste bricks and tiles are used to produce aggregates, which can be used to produce recycled bricks, blocks, wall panels, floor tiles and other building materials. The muck can be used for road construction, pile filling, foundation, etc. Abandoned wood construction waste and undamaged wood can be directly reused in other places, and severely damaged wood components can be used as raw materials for recycled wood to make cardboard or paper.

Construction and decoration waste sorting equipment does not require fire, chemical raw materials, and water. A new technological process that replaces the original pollution methods such as manual, fire, water separation or landfill.

According to the production needs of customers, we can customize and design a complete construction and decoration waste equipment treatment system solution.

It is mainly used for the extraction and sorting of recyclable materials such as urban domestic waste, industrial waste, construction waste, decoration waste, and stale waste.

construction garbage sorting system workflow

Step 1

Initial sorting: After manual sorting, the decoration waste materials are sent to the feeder by a forklift, and areseparated by the disc and fan of the roller screen equipment to separate the large and light materials from theheavy materials. Concrete blocks, red bricks and tiles and other heavy materials are transported by belt to theinside of the crusher feeding mouth for crushing;

Step 2

Primary crushing: After the materials entering the feed port of the crusher are crushed in multiple stages, theyare again removed by the iron removal equipment, and the separated magnetic materials such as steel bars aretransported to the outside of the machine equipment through the belt conveyor, waiting for comprehensiveutilization;

Step 3

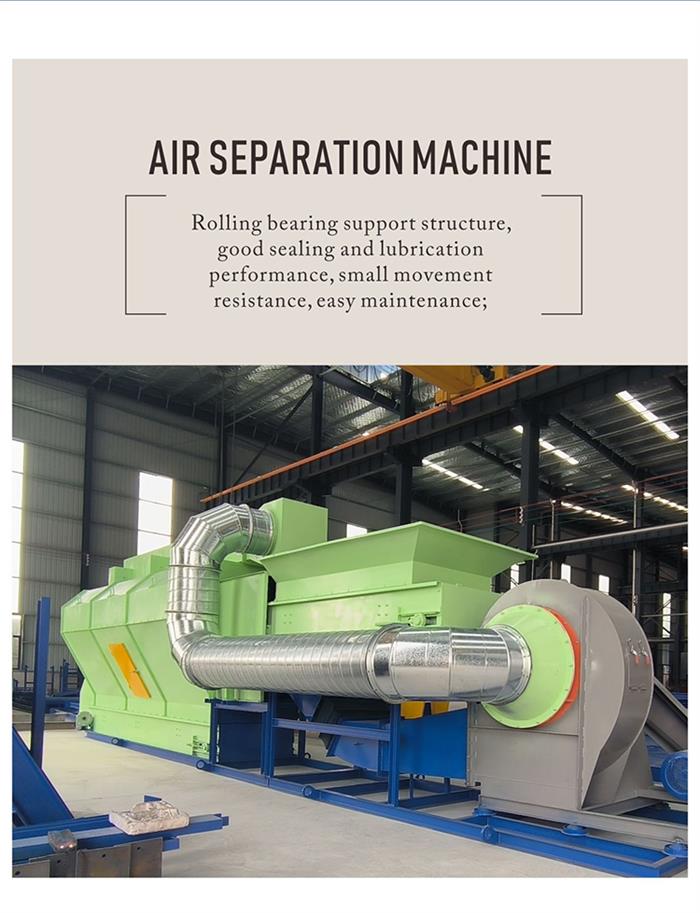

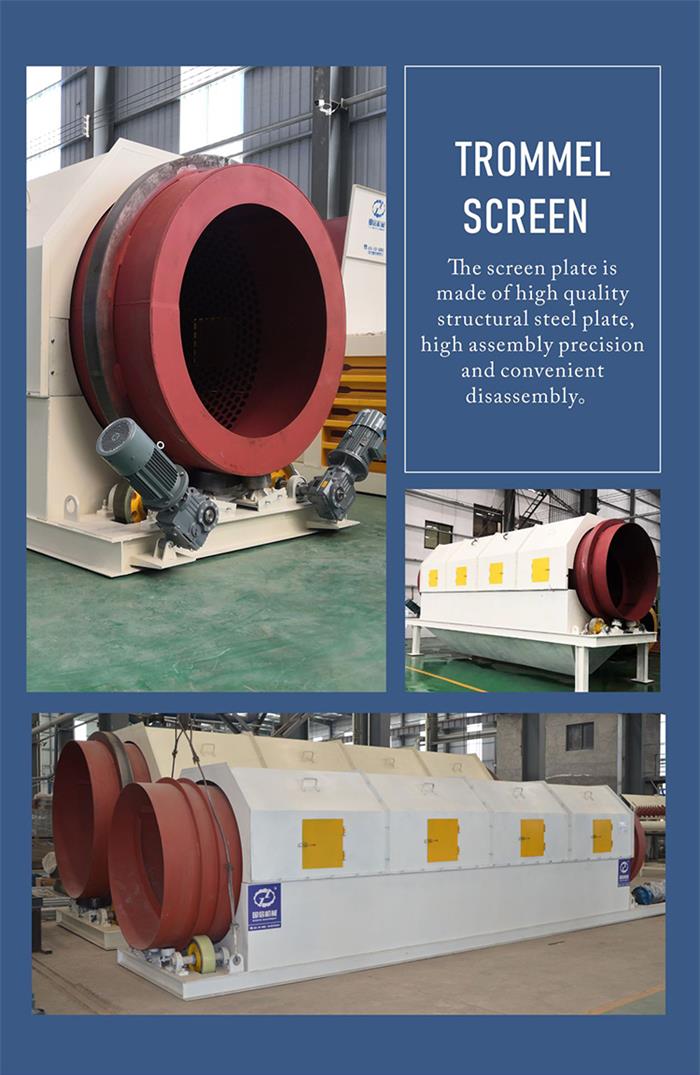

Re-screening: the crushed and iron-removed aggregate is transported to the drum screen equipment, and thedrum screen equipped with a fan can cleanly separate fine paper scraps, plastics, wood slag, etc. from thematerial, and the recycled aggregate lt can be processed and recycled, and the light weight can be reshapedand processed.

Step 4

Circulation system: Under the above-mentioned treatment, the decoration waste realizes a complete set ofcrushing, cleaning and impurity removal production process. Larger materials can be fed back through the beltconveyor and returned to production and processing again, forming a closed-circuit circulation system toimprove the efficiency of the crushing process;

Step 5

Harmless production: The site is equipped with noise reduction and dust collector equipment such as dustremoval fog guns and sanitation sprinklers, so as to reduce construction site dust and secondaryenvironmental pollution as much as possible during the construction and decoration waste treatment process,and prevent adverse effects on the surrounding environment. Realize harmless and green production.

Henan Guoxin Machinery Manufacturing Co., Ltd. was established in 1999. It is a joint-stock enterprise that integrates research, development, production, and sales of construction garbage sorting system. It has many specialized companies under its jurisdiction. Company products: garbage separation machine, garbage sorting machine project, garbage sorting plant, waste sorting machine project, waste segregation machine, etc. If you have any needs, please feel free to consult us.
